Controllers for every access requirement
Select the right controller based on the number of doors, users, readers, locations, and integrations required for your project.
AC‑825IP – 6‑Door Networked Controller
Supports up to 58 doors and 100,000 users with 500,000 evets.
Built‑in TCP/IP networking with secure OSDP V2 communication.
AES‑256 encryption ensures secure data transfer to AxTraxPro™.
Onboard slot + up to 12 expansion boards (R/S/D/P‑805).
Each Reader port with 2 input and 1 output with additional input & Output board.
Works with AxTraxPro™ and Approved software.
Certifications like UL, CE,TUV, RoHS

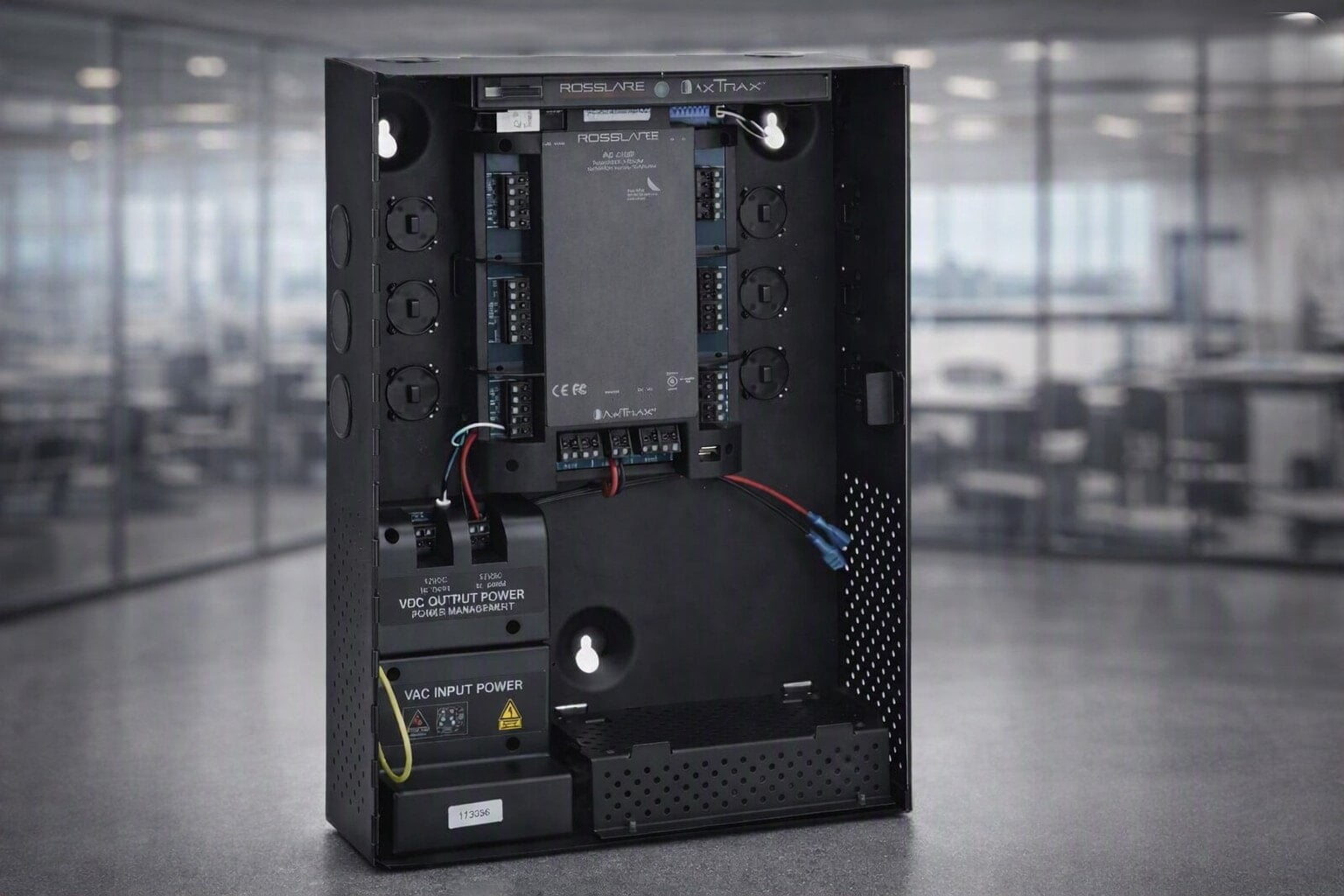

AC‑215IP‑B – 2‑Reader Networked Controller
IP controller with 2 readers, 4 inputs, 4 outputs.
Supports 30,000 credentials + 30,000 PIN codes.
Event log capacity: 20,000 offline records.
Compatible with Wiegand readers (26–64 bit) and multiple keypad formats.
Works with AxTraxPro™ and Approved software.
DIN rail mounting or ME‑1015 enclosure with UPS charger.
Certifications like UL, CE,TUV, RoHS.

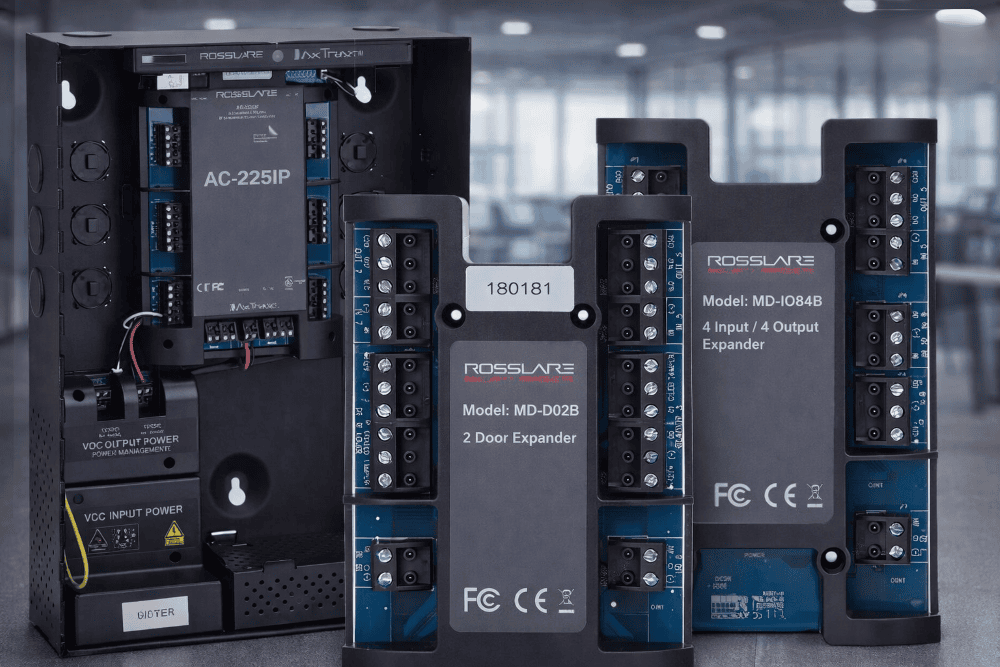

AC‑225IP‑B – Expandable 2‑Reader Controller
IP controller with 2 readers, 4 inputs, 4 outputs.
Supports 30,000 credentials + 30,000 PIN codes and 20,000 offline records.
Expandable with MD‑D02B (adds 2 readers) or MD‑IO84B (adds 8 inputs, 4 outputs).
Compatible with Wiegand readers (26–64 bit) and multiple keypad formats.
Works with AxTraxPro™ and Approved software.
DIN rail mounting or ME‑1015 enclosure with UPS charger.
Certifications like UL, CE,TUV, RoHS.

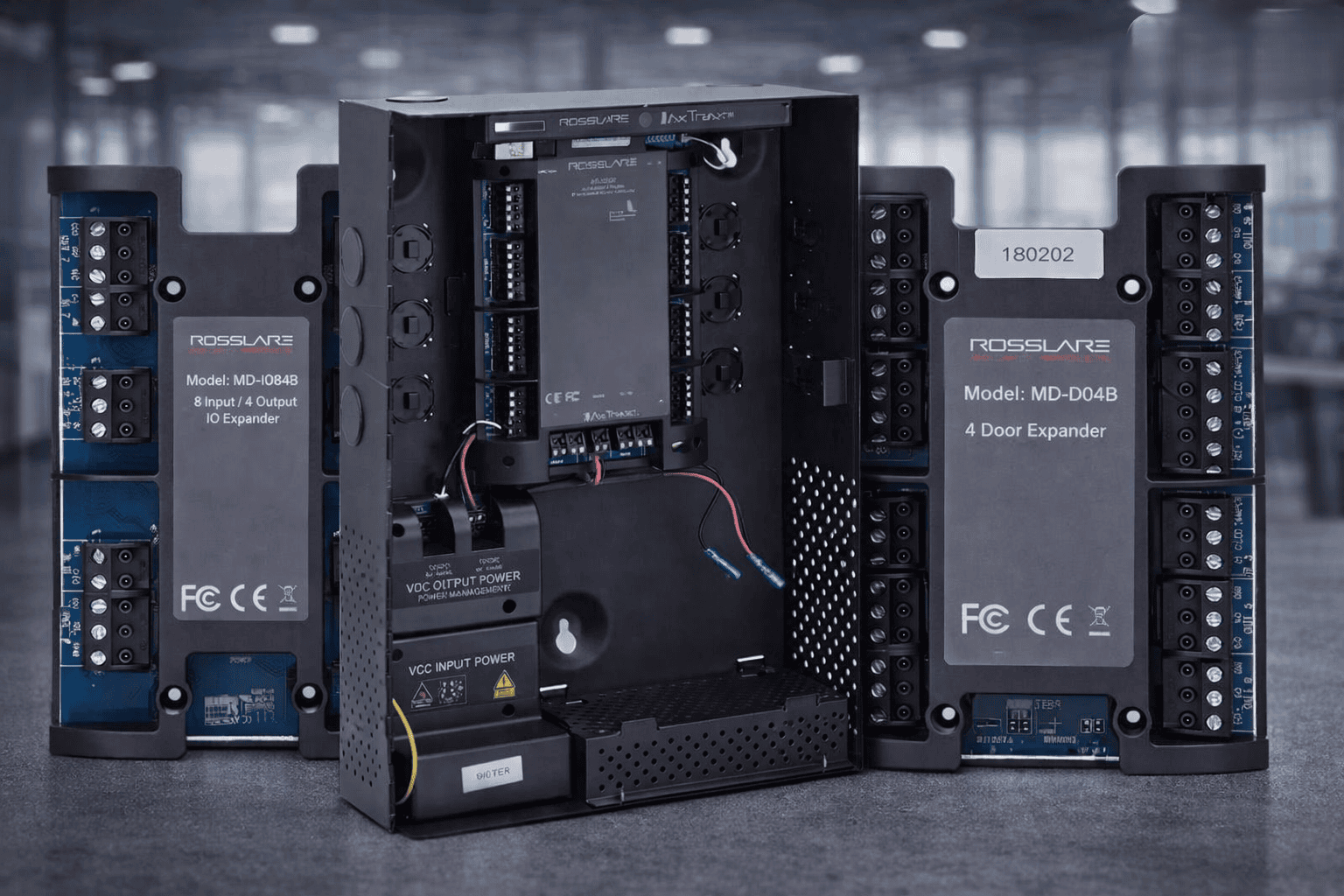

AC‑425IP‑B – Expandable 4‑Reader Controller
IP controller with 4 readers, 4 inputs, 4 outputs.
Supports 30,000 credentials + 30,000 PIN codes and 20,000 offline records.
Expandable with MD‑D04B (adds 4 readers) or MD‑IO84B (adds 8 inputs, 4 outputs).
Compatible with Wiegand readers (26–64 bit) and multiple keypad formats.
Works with AxTraxPro™ and Approved software.
DIN rail mounting or ME‑1015 enclosure with UPS charger.
Certifications like CE,TUV, RoHS.
Controllers for different environments
Choose a controller architecture according to your building, security policy, number of doors, and future expansion needs.
